| Current Status |
| Spurs with HV on ???. |
| C303 cracked open in +275 B+ line. |
FIXED |
| L238, L232 also open in +275 B+ line. |
FIXED |
| Bumble bee cap C413 in ALC box. |
REPLACED |
| Plate choke splice? |
|
| Old audio and vox caps C106,C114,C116. |
REPLACED |
| HV connector broken. |
REPLACED |
| HV filter choke insulation mod. |
DONE |
| First power up 7 Oct 2020. |
| Filament voltage. |
GOOD |
| HV. |
GOOD |
| ALC Zero NG. |
ADJUSTED |
| Blower very noisy. |
|
| Zero Set NG. |
FIXED |
| Stiff PA Tune control? |
|
| Idle Current. |
GOOD |
| Grid Drive |
FIXED |
| Annoying bulky air hose |
REPLACED |
| CW Output |
GOOD |
| SSB Output |
FIXED |
| AM Output |
|
| HV oscillations |
DISAPPEARED |

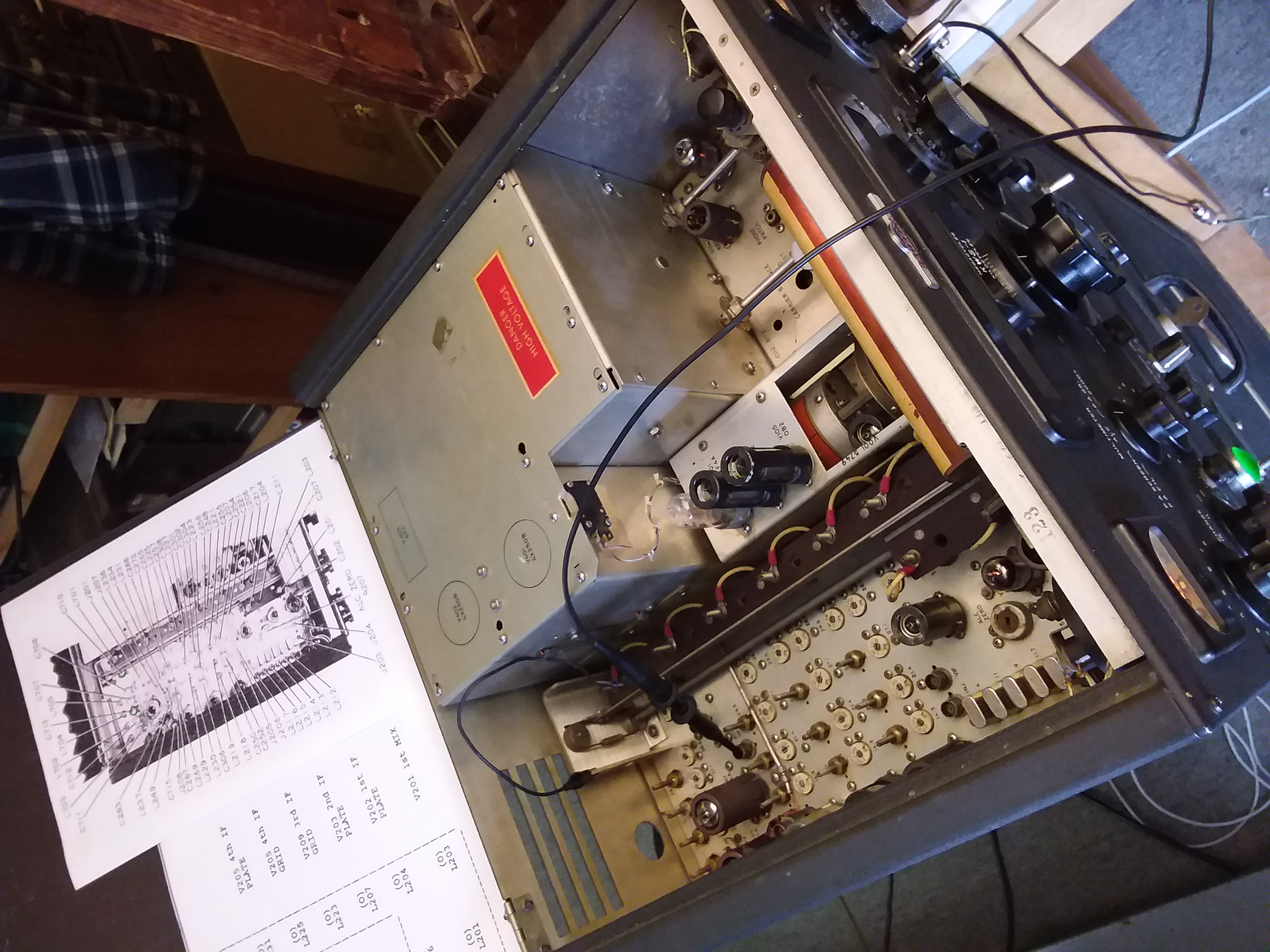

| ALIGNMENT |
| VFO |
DONE |
| Megacycle Dial |
|
| Sideband Select |
DONE |
| Xtal Osc |
DONE |
| Traps |
DONE |
| Neutralization |
??? |
2020 WA2FXM - Mark Mohrmann
