A Utah Radio UAT-2 Modulator

Original UAT Manual and Schematics
Original UAT Manual

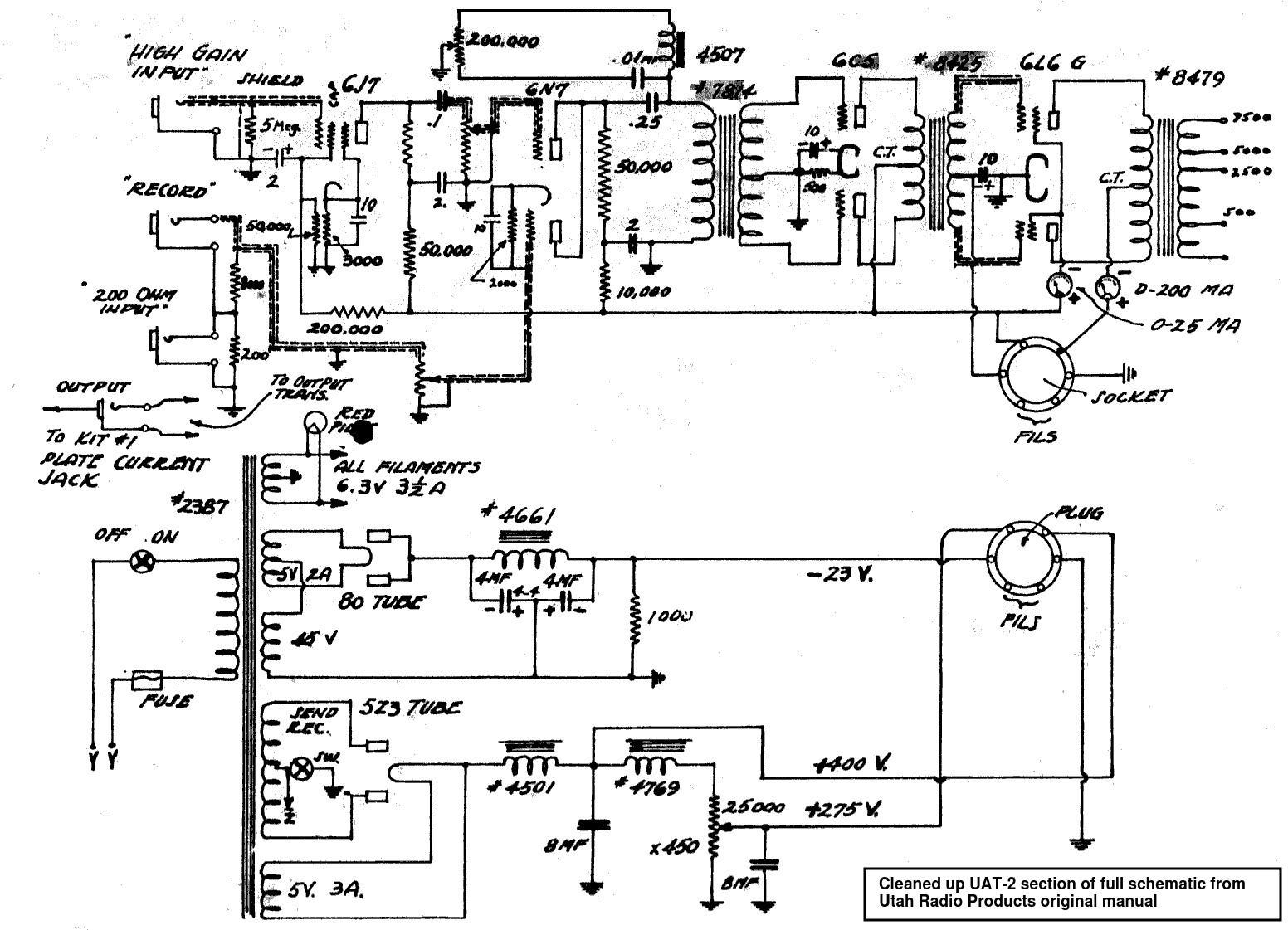

Original UAT-2 Modulator Schematic

Documents
QST-June 1936 (pg.11)
Short Wave & Television-October 1937 (Pg.297)

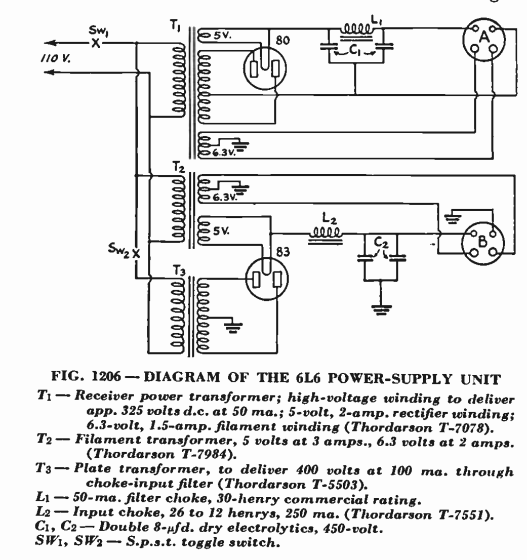

1939 ARRL Handbook Modulator Power Supply Schematic

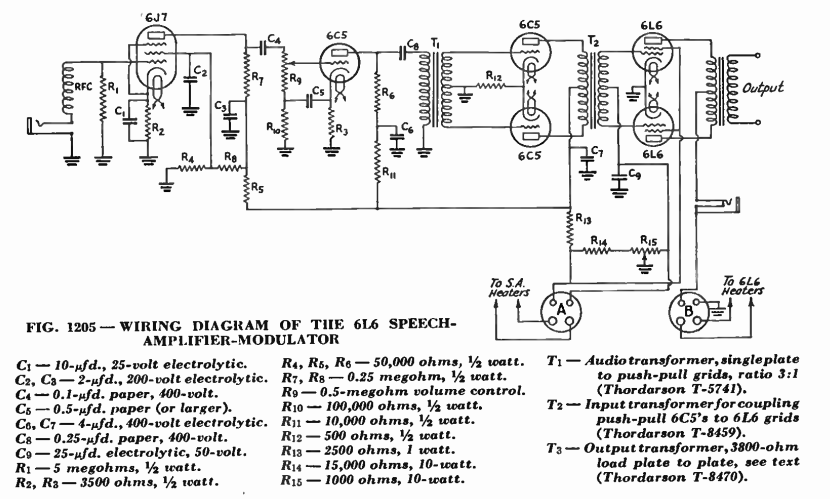

1939 ARRL Handbook Modulator Schematic

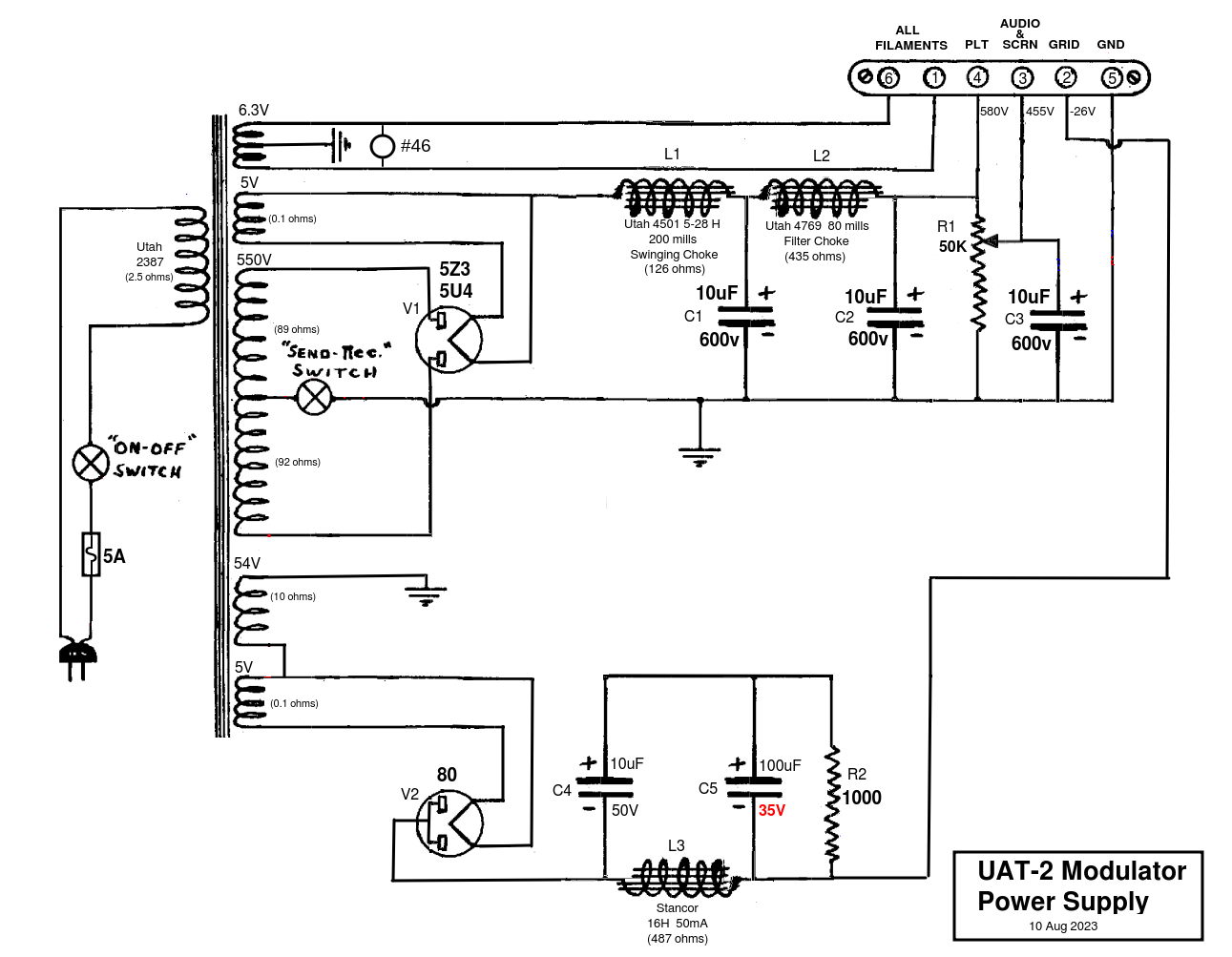

My Power Supply Schematic

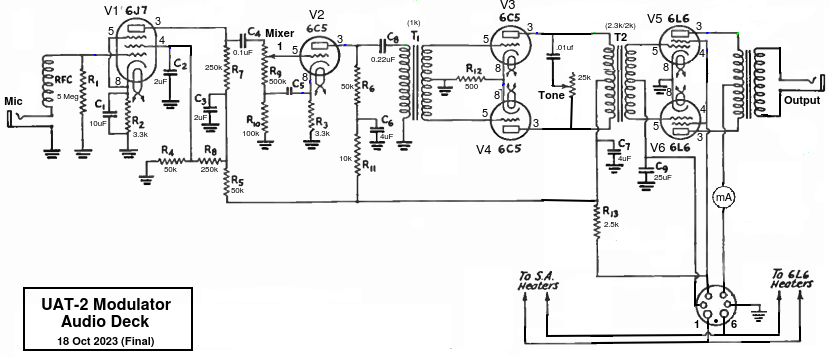

My Audio Deck Schematic

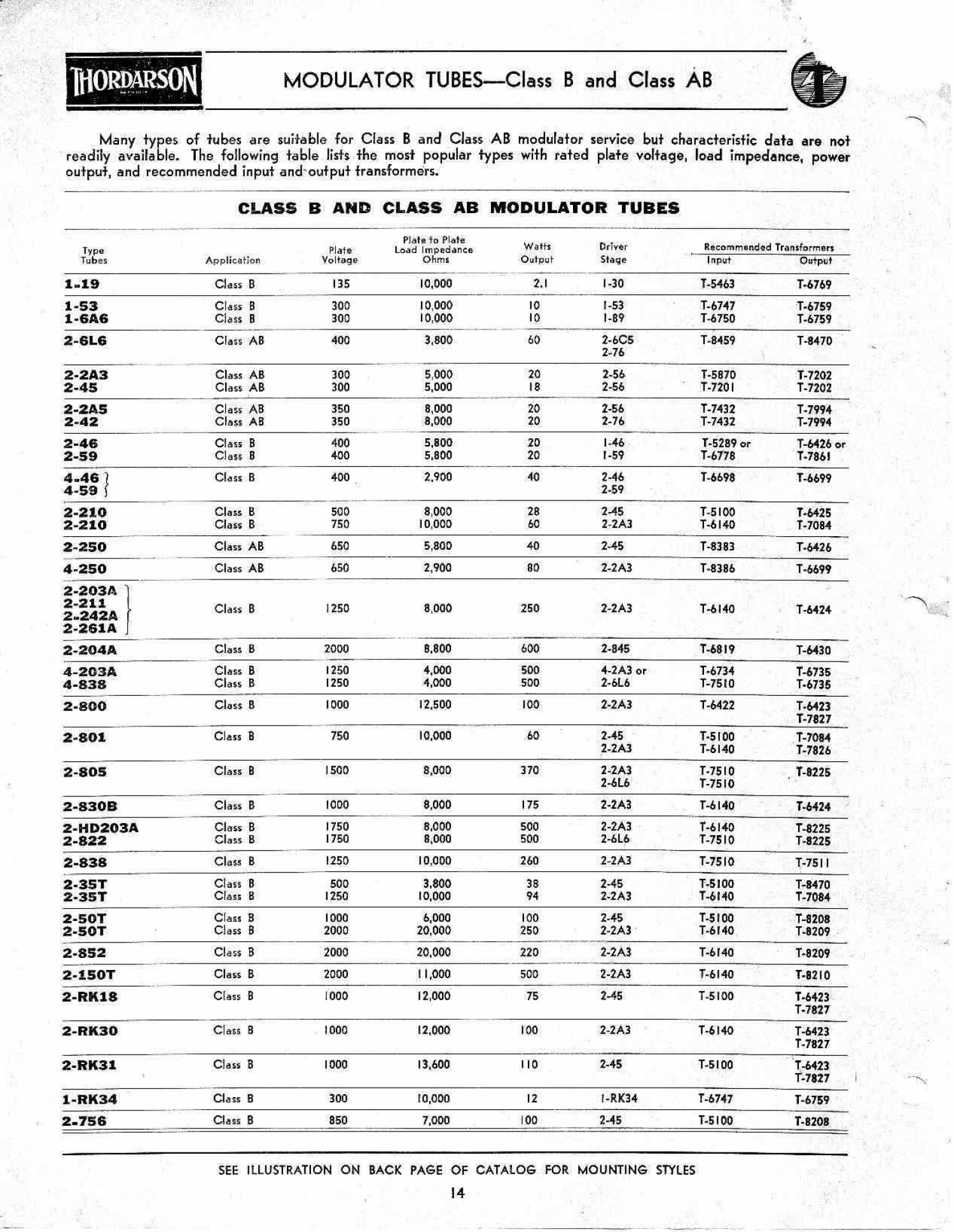

Thordarson Modulator Spec Sheet
